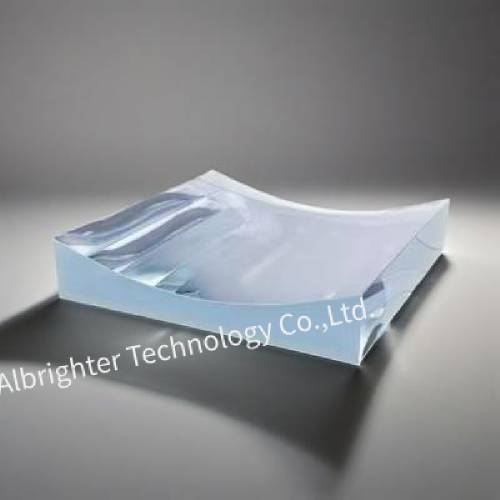

Plano-concave cylindrical lens
Plano-concave cylindrical lenses are commonly used to convert collimated laser sources into linear light sources, while plano-convex cylindrical lenses are commonly used for beam expansion applications.

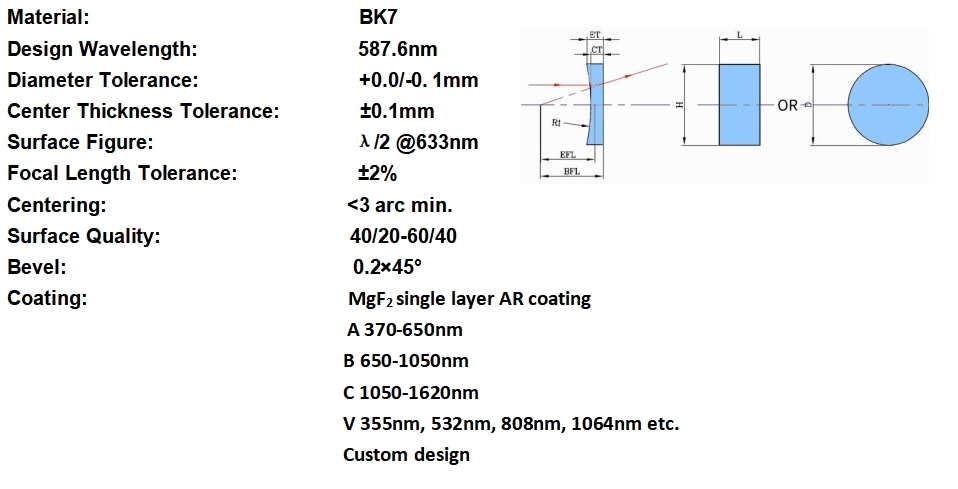

APVCY-—Plano-concave Cylindrical Lenses
| CAT. | Dia or LxH(mm) | EFL(mm) | BFL(mm) | CT (mm) | ET (mm) | R1(mm) |
| APVCY-013-025 | 12.5 | -12.5 | -13.8 | 2.0 | 6.8 | -6.5 |
| APVCY-013-050 | 12.5 | -50.0 | -51.3 | 2.0 | 2.8 | -25.8 |
| APVCY-013-100 | 12.5 | -100.0 | -101.3 | 2.0 | 2.4 | -51.7 |
| APVCY-025-025 | 25.0 | -25.0 | -27.1 | 3.0 | 12.5 | -13.0 |
| APVCY-025-075 | 25.0 | -75.0 | -77.3 | 3.5 | 5.6 | -38.8 |
| APVCY-L8H6-006 | 8.0×6.0 | -6.4 | -7.7 | 2.0 | 3.9 | -3.3 |
| APVCY-L12H10-013 | 12.0×10.0 | -12.7 | -14 | 2.0 | 4.3 | -6.6 |
| APVCY-L20H10-025 | 20.0×10.0 | -25.0 | -26.3 | 2.0 | 3.0 | -12.9 |
| APVCY-L20H20-075 | 20.0×20.0 | -75.0 | -76.3 | 3.0 | 4.3 | -38.8 |
| APVCY-L20H20-150 | 20.0×20.0 | -150.0 | -152 | 3.0 | 3.7 | -77.6 |
| APVCY-L25H13-050 | 25.0×12.5 | -50.0 | -51.7 | 2.5 | 3.2 | -25.8 |
| APVCY-L25H13-100 | 25.0×12.5 | -100.0 | -101.7 | 2.5 | 2.8 | -51.7 |
| APVCY-L50H25-075 | 50.0×25.0 | -75.0 | -77.6 | 4.0 | 6.0 | -38.8 |
| APVCY-L50H25-150 | 50.0×25.0 | -150.0 | -152.6 | 4.0 | 5.0 | -77.5 |
*In addition to N-BK7, we also supply CaF2, Fused Silica, plano concave cylindrical lenses.
*Custom production is available.
