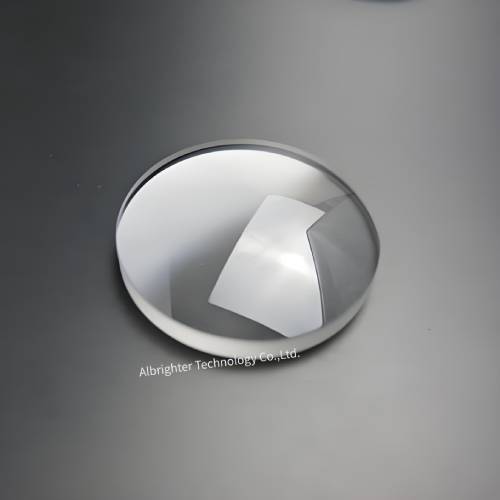

BK7 Plano-Convex Lenses
Plano convex lens(PCX) is mainly used in focusing parallel light or transfer spot light to parallel light. BK7 Plano convex lens has high transmittance from visible light to near infrared(350-2000nm).
| CAT | Dia(mm) | EFL(mm) | BFL(mm) | R1(mm) | CT(mm) | ET(mm) |
| ALPX01-003-005 | 3.00 | 5.00 | 4.00 | 2.58 | 1.50 | 1.00 |
| ALPX01-003-010 | 3.00 | 10.00 | 9.20 | 5.17 | 1.20 | 1.00 |
| ALPX01-005-008 | 5.00 | 8.00 | 6.50 | 4.13 | 2.30 | 1.50 |
| ALPX01-009-012 | 9.00 | 12.00 | 9.80 | 6.20 | 3.40 | 1.50 |
| ALPX01-009-036 | 9.00 | 36.00 | 34.70 | 18.60 | 2.10 | 1.50 |
| ALPX01-012-016 | 12.70 | 16.00 | 12.80 | 8.27 | 4.80 | 1.80 |
| ALPX01-012-032 | 12.70 | 32.00 | 30.00 | 16.53 | 3.10 | 1.80 |
| ALPX01-012-048 | 12.70 | 48.00 | 46.30 | 24.80 | 2.60 | 1.80 |
| ALPX01-020-030 | 20.00 | 30.00 | 26.40 | 15.50 | 5.50 | 1.80 |
| ALPX01-020-060 | 20.00 | 60.00 | 57.80 | 31.00 | 3.50 | 1.80 |
| ALPX01-025-050 | 25.40 | 50.00 | 46.54 | 25.83 | 5.30 | 2.00 |
| ALPX01-025-100 | 25.40 | 100.00 | 97.70 | 51.66 | 3.60 | 2.00 |
| ALPX01-025-500 | 25.40 | 500.00 | 498.90 | 258.30 | 2.30 | 2.00 |
| ALPX01-030-075 | 30.00 | 75.00 | 71.40 | 38.75 | 5.50 | 2.50 |
| ALPX01-030-120 | 30.00 | 120.00 | 117.30 | 61.99 | 4.30 | 2.50 |
| ALPX01-040-080 | 40.00 | 80.00 | 74.70 | 41.33 | 8.20 | 3.00 |
| ALPX01-040-280 | 40.00 | 280.00 | 277.30 | 144.65 | 4.40 | 3.00 |
| ALPX01-050-100 | 50.00 | 100.00 | 93.80 | 51.66 | 9.50 | 3.00 |
| ALPX01-050-250 | 50.00 | 250.00 | 246.60 | 129.15 | 5.40 | 3.00 |
| ALPX01-075-350 | 75.00 | 350.00 | 345.76 | 180.81 | 6.90 | 3.00 |
*In addition to N-BK7, we also supply CaF2, Fused Silica, ZnSe, Ge substrate PCX lenses.
*Custom production is available.
