Description

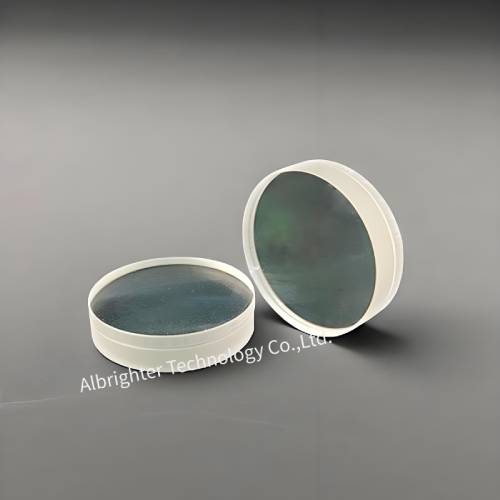

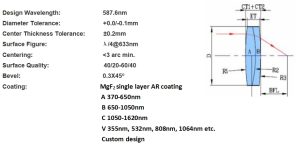

AACD—Achromatic Doublet Lenses
| CAT. | Dia(mm) | EFL(mm) | BFL(mm) | CT A(mm) | CT B(mm) | CT(mm) | ET(mm) | R1(mm) | R2(mm) | R3(mm) | Material |
| AACD-005-008 | 5.0 | 7.5 | 5.2 | 2.8 | 1.7 | 4.5 | 3.7 | 5.3 | -3.9 | -17.1 | N-BAF10/N-SF6HT |
| AACD-005-015 | 5.0 | 15.0 | 13.6 | 2.7 | 2.1 | 4.8 | 4.3 | 12.5 | -5.3 | -12.1 | N-BK7/SF2 |
| AACD-008-010 | 8.0 | 10.0 | 6.7 | 4.5 | 2.0 | 6.5 | 4.9 | 7.1 | -5.3 | -22.7 | N-BAF10/N-SF6HT |
| AACD-008-020 | 8.0 | 20.0 | 17.8 | 2.5 | 1.5 | 4.0 | 3.0 | 11.1 | -9.2 | -34.8 | N-BK7/SF2 |
| AACD-014-045 | 14.0 | 45.3 | 42.9 | 3.3 | 1.0 | 4.3 | 3.1 | 26.1 | -19.7 | -81.8 | H-K9L/F4 |
| AACD-018-060 | 18.0 | 60.0 | 56.9 | 5.5 | 3.0 | 8.5 | 6.9 | 41.9 | -25.7 | -68.9 | H-BaK2/H-ZF11 |
| AACD-025-035 | 25.0 | 35.0 | 26.9 | 11.0 | 4.0 | 15.0 | 10.5 | 23.4 | -20.1 | -87.5 | H-LaK10/H-ZF7LA |
| AACD-042-080 | 42.0 | 80.0 | 73.1 | 16.0 | 1.5 | 17.5 | 11.7 | 69.2 | -28.4 | -86.7 | H-BaK7/H-ZF1 |
| AACD-046-376 | 46.0 | 376.0 | 371.2 | 8.0 | 2.8 | 10.8 | 8.7 | 199.7 | -83.3 | -346 | H-K9L/H-ZF2 |
*The coating wavelength range are optional.
*Positive, negative, triplet, and aspherized lenses are all available as requests.
