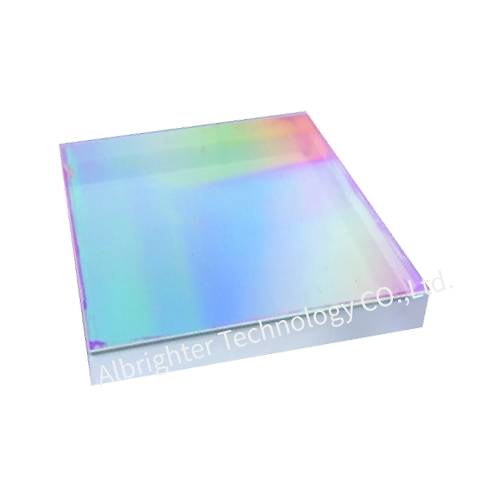

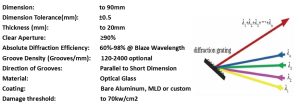

Reflective Ruled Grating
Reflective ruled diffraction grating is a kind of optical glass substrate composed of dense, equidistant parallel lines, and the surface is coated with aluminized, multi-layer dielectric or other reflective film, which can separate white light into various components through diffraction effect or combine several different spectral beams into one(spectral beam combining-SBC grating). High-quality ruled diffraction gratings can meet almost all diffraction needs, especially when the efficiency requirements are relatively high. Diffraction gratings can be used in a variety of monochromatic research, teaching, and industrial applications.
| CAT | Dimension(mm) | Groove Density(grooves/mm) | Blaze Wavelength(nm) |
| AGR1-13-300-500 | 12.7×12.7×6 | 300 | 500 |
| AGR1-25-300-300 | 25x25x6 | 300 | 300 |
| AGR1-25-600-500 | 25x25x6 | 600 | 500 |
| AGR1-25-600-750 | 25x25x6 | 600 | 750 |
| AGR1-25-600-1250 | 25x25x6 | 600 | 1250 |
| AGR1-30-2400-250 | 30x30x9.5 | 2400 | 250 |
| AGR1-35-1200-365 | 35x35x9.5 | 1200 | 365 |
| AGR1-35-1200-800 | 35x35x9.5 | 1200 | 800 |
| AGR1-40-300-1500 | 40x40x9.5 | 300 | 1500 |
| AGR1-50-300-365 | 50x50x9.5 | 300 | 1000 |
| AGR1-50-300-3400 | 50x50x9.5 | 300 | 3400 |
| AGR1-50-600-750 | 50x50x9.5 | 600 | 750 |
| AGR1-50-600-1000 | 50x50x9.5 | 600 | 1000 |
| AGR1-50-1200-250 | 50x50x9.5 | 1200 | 250 |
*Custom production is available, especially for spectral beam combining application.
*The groove density, diffraction efficiency, damage threshold and substrate material can be custom produced based on different application and requests.
